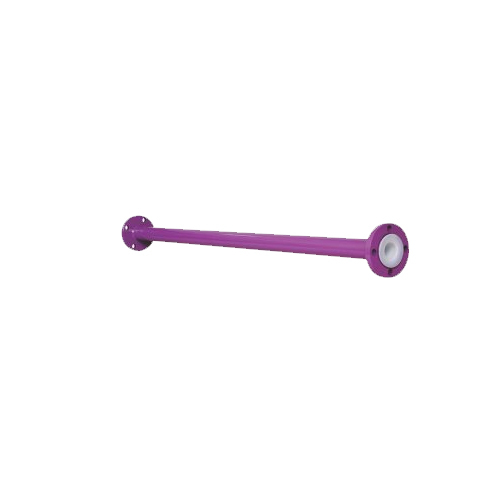

Lined Pipe (Non Jacketed)

Lined Pipe (Non Jacketed)

Product Details:

  • Product Type Flange
  • Material Stainless Steel
  • Color Pink
  • Warranty Yes
  • Click to view more
X

Lined Pipe (Non Jacketed) Price And Quantity

  • 10 Unit

Lined Pipe (Non Jacketed) Product Specifications

  • Yes
  • Stainless Steel
  • Flange
  • Pink

Lined Pipe (Non Jacketed) Trade Information

  • 1000 Unit Per Month
  • 7 Days

Product Description

Our specially designed Lined Pipe Non Jacketed is seamless in design because it is made to perfection by our experts This pipe is made using carbon steel that is known for its surface hardness and tensile strength To make lining we use different materials like PVDF HDPE ETFE PP FEP and others because the demand of every customers differs from other To ensure Lined Pipe Non Jacketed is high in quality and performs excellent function we take Hydraulic Test Spark Test and others

Housing Material Options

  • PIPE  1 SEAMLESS CS ASTM A106 GRB SCH40 2 ASTM A312 TP 304 SCH40
  • FLANGE  1 IS 2062  ASTM A105 2 ASTM A351 GR CF8

Lining Material Options

  • PFA  ASTM D 3307
  • FEP  ASTM D 2116
  • ETFE  ASTM D 3159
  • PVDF  ASTM D 3322
  • PP  ASTM D 4101
  • HDPE
Dimensional Data

ANSI #150 Flanged

SIZE

A (mm)

C(mm)

H(mm)

S (MIN.) (mm)

Approx Weight (Kg)

FOR 1 Mtr.

Additional Kg./Mtr.

DN25-1

20.5

51

2.3

3.0

4.69

2.95

DN40-1 1/2

33.5

73

3.0

3.25

7.92

4.97

DN50-2

45.5

92

3.0

3.25

11.04

6.63

DN80-3

70.9

127

3.5

4.0

21.96

13.74

DN100-4

94

157

3.5

4.5-5.0

30.52

19.4

DN150-6

144.1

216

4.5

6.0-6.5

On Request

On Request

DN200-8

190.7

270

5.0

Consult Factory

On Request

On Request


Lined Pipe Vacuum Resistance (in inch of Mercury)

Material

Temp.

25 NB

40 NB

50 NB

80 NB 100 NB


21c

Full

Full

Full

Full

Full

PTFE

100c

Full

Full

Full

Full

Full


175c

Full

Full

Full

Full

Full


21c

Full

Full

Full

Full

Full

PVDF

85c

Full

Full

Full

Full

Full


135c

Full

Full

Full

Full

Full

PP

21c

Full

Full

Full

Full

Full


95c

Full

Full

Full

Full

Full

HDPE

21c

Full

Full

Full

Full

Full


65c

Full

Full

Full

Full

Full


Consult HiTech Applicator for vacuum services Special Heavy Duty PTFE Liners vailable for full vacuum Details can be provided on request Other Flange Drillings like DIN 2632  2633  BS 10 Table D E or F are also available on request

  • Max Length available  3 Mtr
  • Tolerance  35mm 0 to 1 Mtr and 50mm 1 to 3 Mtr
  • Clear ID for HDPEPP Lined Pipes DNID 2518  4032  5042  6557  8067
